IP66. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Knuckle permits 350° rotation, forward tilt 60° and backward tilt 90°. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Including 1.5 m of flexible PVC free cable. Mains voltage versions, DALI interface Class I. 1-10 V analogue dimming available on request; refer to accessory listings. 24VDC low voltage versions, 0-10 V analogue dimming Class III available on request. Remote 24VDC power supply to be ordered separately.

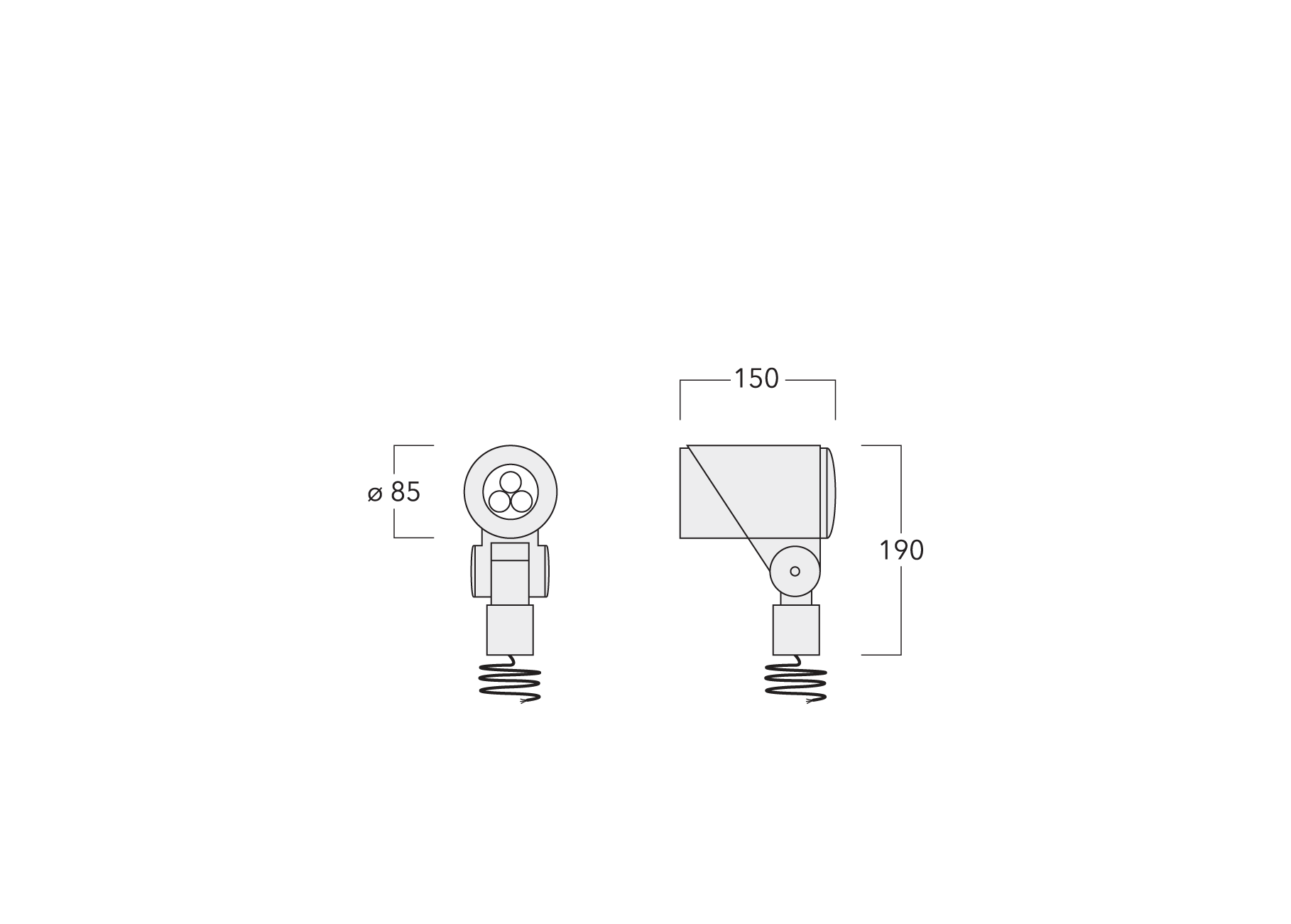

FLC311 Spigot mounted Schematics
Colours
RAL9004 Signal black
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, die-cast aluminium alloy
LensSafety glass lens
FastenersPCS hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK08
Ingress ProtectionIP66
Corrosion Protection5CE
MountingSlipfitter suitable for mounting accessories
Electrical
Ballast / DriverDALI interface
CableIncluding 1.5 m of flexible PVC free cable
Additional Information
Part-IDLight DistributionLight SourceRated LumenCRIDownloads
