IP66. IK08. Marine-grade, all aluminium construction. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Knuckle permits 350° rotation, forward tilt 60° and backward tilt 90°. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Two cable entries. Mains voltage versions, DALI interface Class I. 1-10 V analogue dimming available on request; refer to accessory listings. 24VDC low voltage versions, 0-10 V analogue dimming Class III available on request. Remote 24VDC power supply to be ordered separately.

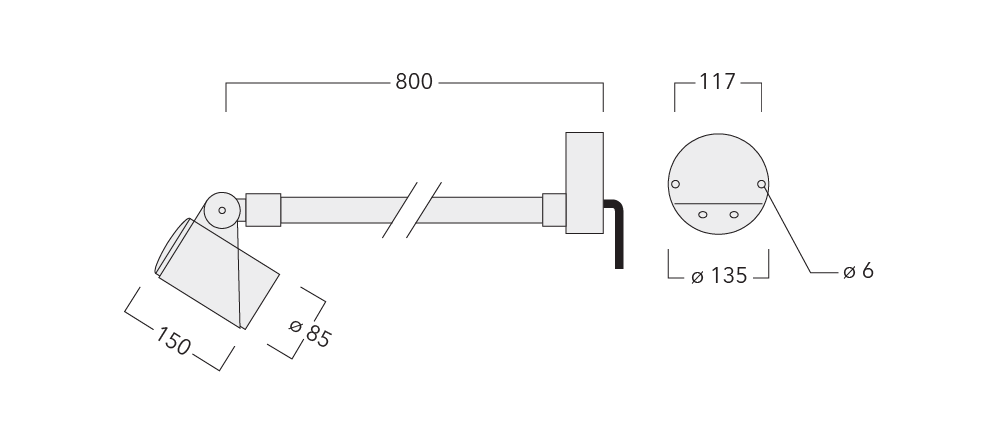

FLC311 Wall bracket Schematics
Colours
RAL9004 Signal black
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, all aluminium construction
LensSafety glass lens
FastenersPCS hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK08
Ingress ProtectionIP66
Corrosion Protection5CE
MountingKnuckle permits 340° rotation, forward tilt 54° and backward tilt 90°
Electrical
Ballast / DriverIntegral EC electronic converter (mains voltage). Integral ED electronic driver (24VDC low voltage).
CableTwo cable entries
Additional Information
Part-IDLight DistributionLight SourceRated LumenCRIDownloads
