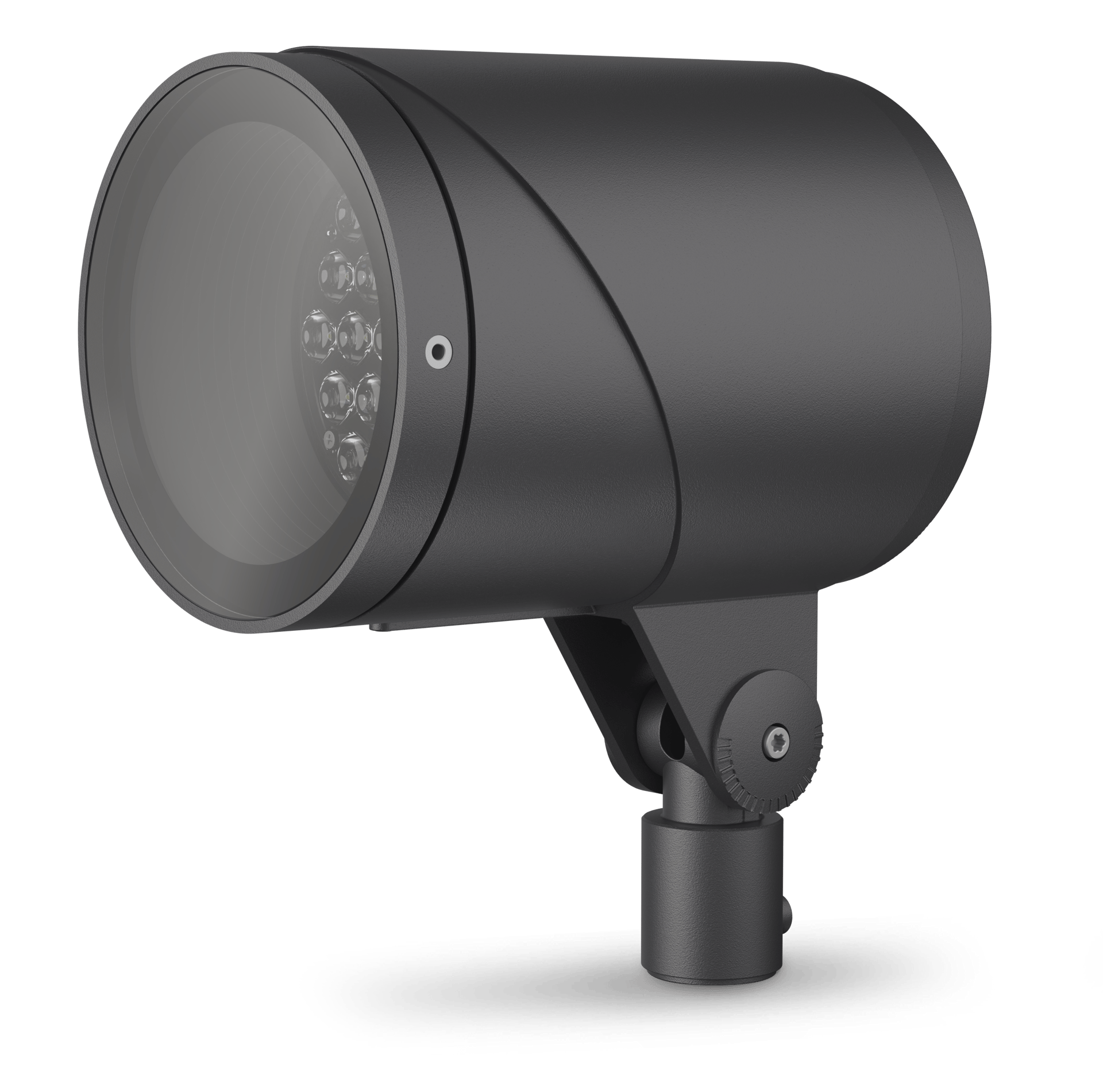

RGBW/RGBA Colour Changer. RGBW (white in 4000 K, 3000 K available on request) and RGBA. IP66. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. DMX interface. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Including 1.5 m of flexible PVC free cable. Optical accessories are factory-installed. To be specified at time of ordering.

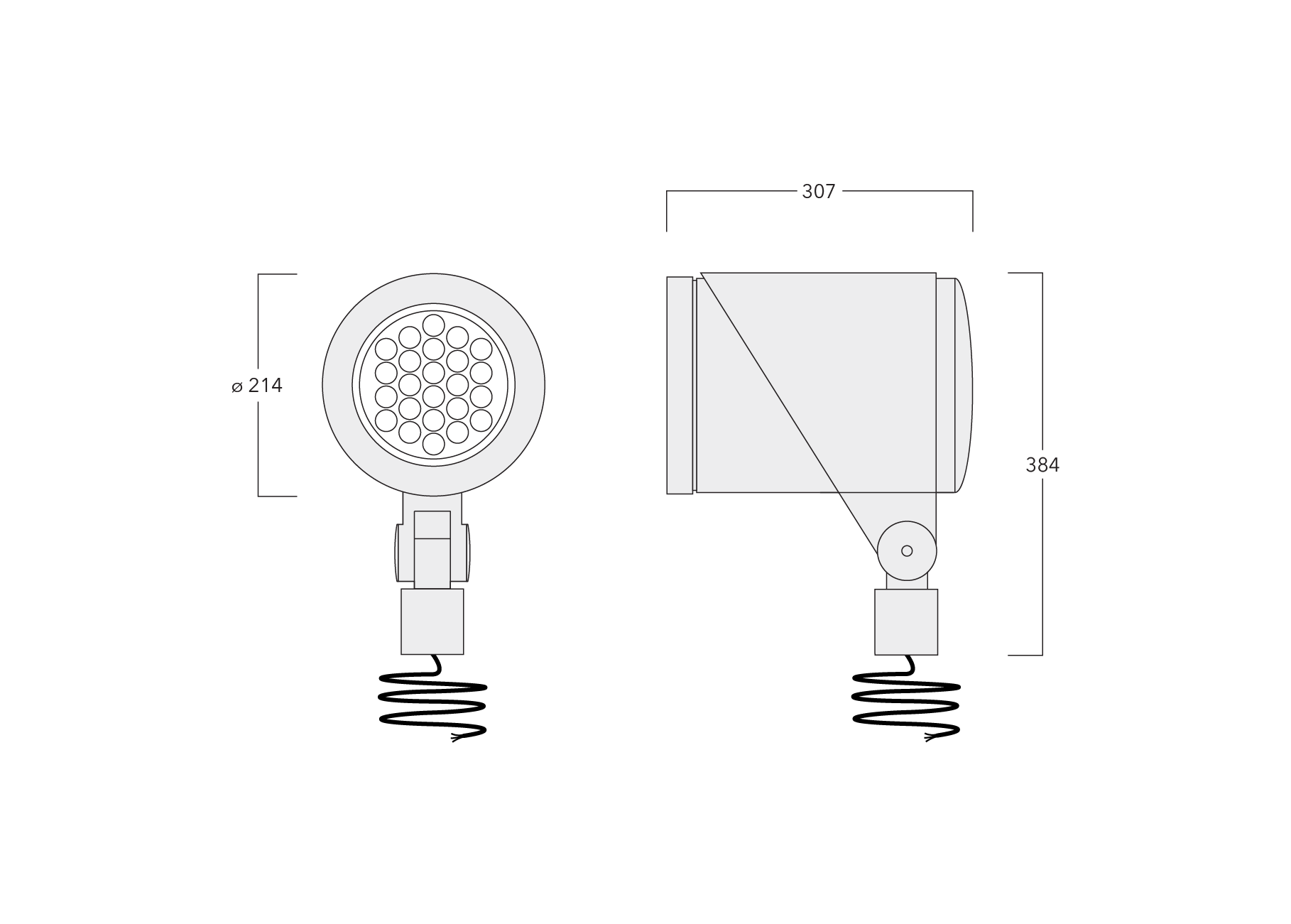

FLC341-CC Spigot mounted Schematics
Colours
RAL7016 Anthracite grey
RAL9004 Signal black
RAL9007 Grey aluminium
RAL9016 Traffic white
Material
BodyMarine-grade, die-cast aluminium alloy
LensSafety glass lens
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK08
Ingress ProtectionIP66
Corrosion Protection5CE
MountingSpigot mounted
Electrical
Ballast / DriverDMX
Cable1.5 m of flexible PVC free cable
Power Factor> 0.9
Power Supply220-240V / 50-60 Hz
Surge ProtectionSP10
Additional Information
Part-IDLight DistributionLight SourceRated LumenCRISpecificationsPhotometrics
TextPDF
