FLB100 series

FLB141 LED RAIL66 - Symmetric

Static White

Choose a variant:

RAIL66
Space Frame

Choose a family:

FLB141 LED RAIL66 - Asymmetric
L×W: 215×175 mm
FLB141 LED RAIL66 - Symmetric
L×W: 215×175 mm
Home
Products
RAIL66

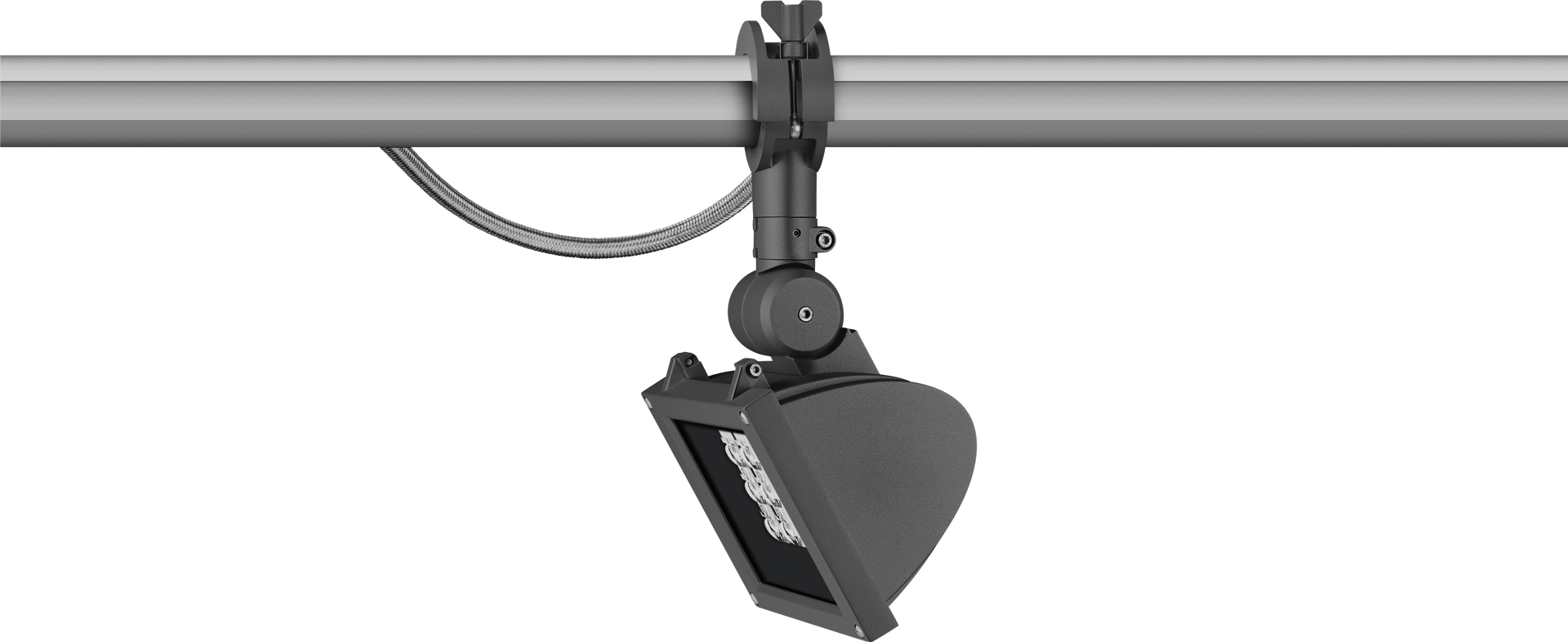

FLB141 LED RAIL66 - Symmetric
Family Spec Sheet Installation Instructions More Downloads

IP66, Class I. IK08. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens, hinged. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Including 0.4 m of flexible cable enclosed in a stainless conduit, in-line connector and mounting clamp for installation to RAIL66 mounting system.

FLB141 LED RAIL66 - Symmetric Schematics
Colours
RAL9004 Signal black
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK08
Ingress ProtectionIP66
Corrosion Protection5CE
Electrical
Ballast / DriverIntegral EC electronic converter
Cableincluding 0.4 m of flexible cable enclosed in a stainless conduit, and in-line connector
Additional Information

Rated Lumen

Wattage

To
Part-IDLight DistributionLight SourceRated LumenCRISpecificationsPhotometrics
TextPDF
161-5932symmetric, wide beam [B]LED-6/18W / 1050 mA - 3000 K2018.880 ULD
161-5934symmetric, wide beam [B]LED-6/18W / 1050 mA - 4000 K2112.780 ULD
161-5933symmetric, wide beam [B]LED-6/26W / 1400 mA - 3000 K2582.280 ULD
161-5935symmetric, wide beam [B]LED-6/26W / 1400 mA - 4000 K2699.680 ULD
161-5936symmetric, medium beam [M]LED-6/18W / 1050 mA - 3000 K2167.280 ULD
161-5938symmetric, medium beam [M]LED-6/18W / 1050 mA - 4000 K226880 ULD
161-5937symmetric, medium beam [M]LED-6/26W / 1400 mA - 3000 K277280 ULD
161-5939symmetric, medium beam [M]LED-6/26W / 1400 mA - 4000 K289880 ULD
161-5940symmetric, very narrow beam [EE]LED-6/18W / 1050 mA - 3000 K2165.680 ULD
161-5942symmetric, very narrow beam [EE]LED-6/18W / 1050 mA - 4000 K2266.480 ULD
161-5941symmetric, very narrow beam [EE]LED-6/26W / 1400 mA - 3000 K277080 ULD
161-5943symmetric, very narrow beam [EE]LED-6/26W / 1400 mA - 4000 K2895.980 ULD
Showing 1 to 12 of 12 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
161-9118Wire guard EG
