X-LINE NANO Pilotable
Fiche technique de la famille Instructions d'installation Autres téléchargements

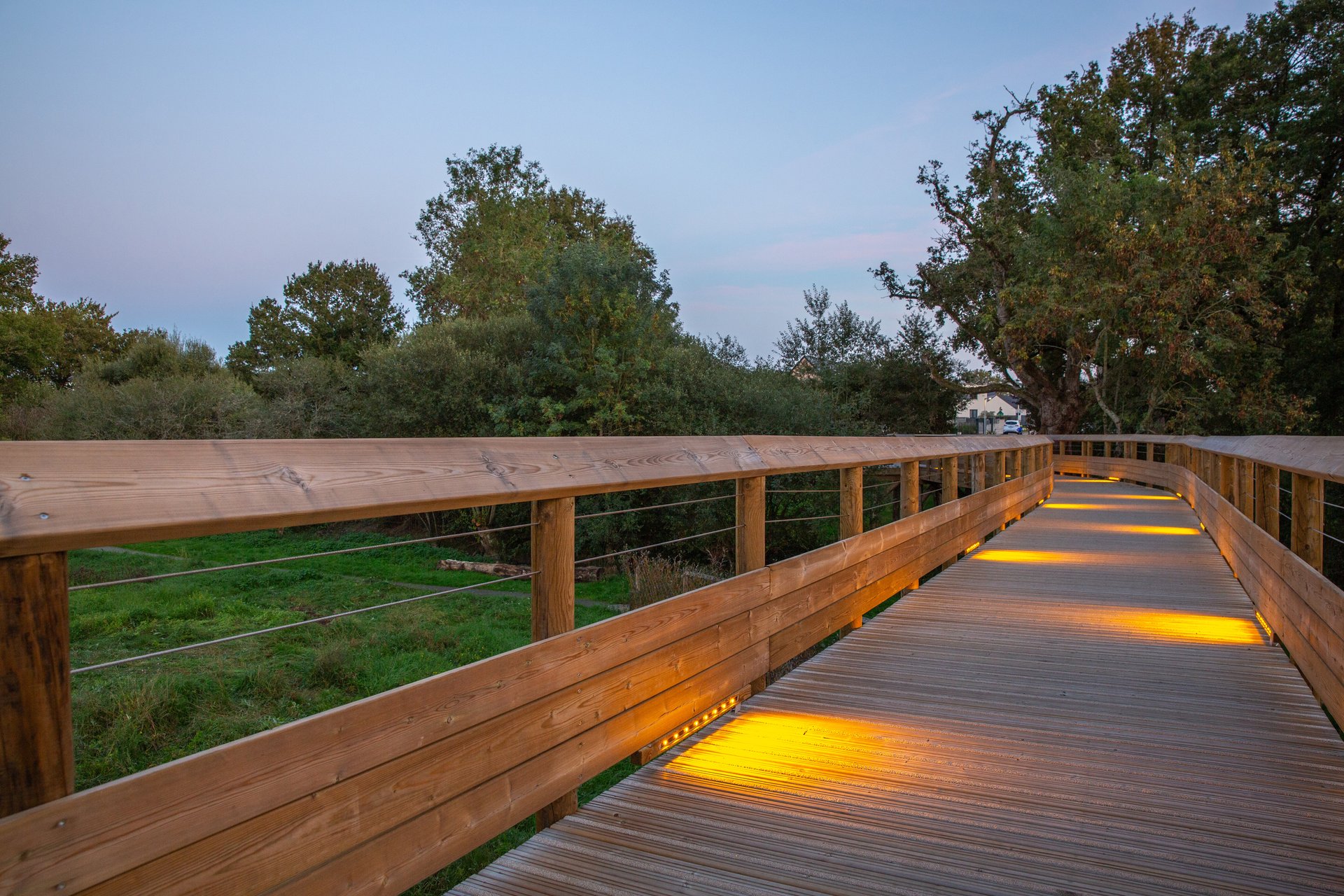

IP66, Classe I. IK08. Profil aluminium anodisé incolore. PMMA clair. Joint silicone. Fixation sur deux équerres en aluminium anodisé. Visserie inox avec traitement anti couple galvanique Delta Seal®. Visière en option en aluminium brut, RAL à déterminer à la commande. Optique : 50x15°, 2x30°. Mini réglette à LED monochrome pour l'éclairage extérieur. NE PAS ENCASTRER.

X-LINE NANO Pilotable Schematics
Couleurs
Description du matériel
CorpsProfil aluminium anodisé incolore. PMMA clair.
VisserieVisserie imperdable inox avec traitement anti couple galvanique Delta Seal®.
JointJoint silicone
IKIK08
IPIP66
Protection contre la corrosionEnrobage en résine semi-rigide polyuréthane qui absorbe les dilatations thermiques, diélectrique, étanche, sans solvant et sans halogène.
Description électrique
DriverPilotable
CâbleVersion pilotable : câble noir numéroté 3x0,5mm². 1 (V-), 2 (V+), 3 dimming. Longueur : 150cm.
Facteur de puissance>0.9
Protection contre les surtensions10 kV / 5kA
Informations complémentaires
Durée de vieTa=30° L80 B10 > 60 000 heures
GARANTIEGarantie 5ans : sur module LED et driver (voir les conditions FLUX).

Flux lumineux émis

RéférenceDistribution lumineuseSource lumineuseFlux lumineux émisIRCSpécificationsPhotométrie
TextePDF
819-0205symmetric linear, asymmetric beam [50x15°]LED-FX-4/3W / 24V - 2700K188.670
819-0210symmetric linear, asymmetric beam [50x15°]LED-FX-8/6W / 24V - 2700K377.270
819-0215symmetric linear, asymmetric beam [50x15°]LED-FX-12/9W / 24V - 2700K565.870
819-0220symmetric linear, asymmetric beam [50x15°]LED-FX-16/12W / 24V - 2700K754.470
819-0225symmetric linear, asymmetric beam [50x15°]LED-FX-20/15W / 24V - 2700K94370
819-0230symmetric linear, asymmetric beam [50x15°]LED-FX-4/3W / 24V - 3000K188.670
819-0235symmetric linear, asymmetric beam [50x15°]LED-FX-8/6W / 24V - 3000K377.270
819-0240symmetric linear, asymmetric beam [50x15°]LED-FX-12/9W / 24V - 3000K565.870
819-0250symmetric linear, asymmetric beam [50x15°]LED-FX-20/15W / 24V - 3000K94370
819-0255symmetric linear, asymmetric beam [50x15°]LED-FX-4/3W / 24V - 4000K198.470
819-0260symmetric linear, asymmetric beam [50x15°]LED-FX-8/6W / 24V - 4000K396.970
819-0265symmetric linear, asymmetric beam [50x15°]LED-FX-12/9W / 24V - 4000K634.770
819-0270symmetric linear, asymmetric beam [50x15°]LED-FX-16/12W / 24V - 4000K793.870
819-0275symmetric linear, asymmetric beam [50x15°]LED-FX-20/15W / 24V - 4000K992.270
819-0280symmetric linear, asymmetric beam [50x15°]LED-FX-4/3W / 24V - 6500K211.970
819-0285symmetric linear, asymmetric beam [50x15°]LED-FX-8/6W / 24V - 6500K423.870
819-0290symmetric linear, asymmetric beam [50x15°]LED-FX-12/9W / 24V - 6500K635.770
819-0295symmetric linear, asymmetric beam [50x15°]LED-FX-16/12W / 24V - 6500K847.670
819-0300symmetric linear, asymmetric beam [50x15°]LED-FX-20/15W / 24V - 6500K1059.470
819-0305symmetric linear, asymmetric beam [50x15°]LED-FX-4/9W / 24V - ROUGE93.50
819-0310symmetric linear, asymmetric beam [50x15°]LED-FX-8/18W / 24V - ROUGE1870
819-0315symmetric linear, asymmetric beam [50x15°]LED-FX-12/27W / 24V - ROUGE280.40
819-0320symmetric linear, asymmetric beam [50x15°]LED-FX-16/9W / 24V - ROUGE373.90
819-0325symmetric linear, asymmetric beam [50x15°]LED-FX-20/45W / 24V - ROUGE467.40
819-0330symmetric linear, asymmetric beam [50x15°]LED-FX-4/3W / 24V - VERT200.10
819-0335symmetric linear, asymmetric beam [50x15°]LED-FX-8/6W / 24V - VERT400.20
819-0340symmetric linear, asymmetric beam [50x15°]LED-FX-12/9W / 24V - VERT600.20
819-0345symmetric linear, asymmetric beam [50x15°]LED-FX-16/12W / 24V - VERT800.30
819-0350symmetric linear, asymmetric beam [50x15°]LED-FX-20/15W / 24V - VERT1000.40
819-0355symmetric linear, asymmetric beam [50x15°]LED-FX-4/3W / 24V - BLEU R.22.60
819-0360symmetric linear, asymmetric beam [50x15°]LED-FX-8/6W / 24V - BLEU R.45.30
819-0365symmetric linear, asymmetric beam [50x15°]LED-FX-12/9W / 24V - BLEU R.67.90
819-0370symmetric linear, asymmetric beam [50x15°]LED-FX-16/12W / 24V - BLEU R.90.50
819-0375symmetric linear, asymmetric beam [50x15°]LED-FX-20/15W / 24V - BLEU R.113.20
819-0380symmetric linear, asymmetric beam [50x15°]LED-FX-4/9W / 24V - AMBRE86.30
819-0385symmetric linear, asymmetric beam [50x15°]LED-FX-8/18W / 24V - AMBRE172.50
819-0390symmetric linear, asymmetric beam [50x15°]LED-FX-12/26W / 24V - AMBRE258.80
819-0395symmetric linear, asymmetric beam [50x15°]LED-FX-16/35W / 24V - AMBRE345.10
819-0400symmetric linear, asymmetric beam [50x15°]LED-FX-20/44W / 24V - AMBRE431.30
819-0705symmetric linear, wide beam [2x30°]LED-FX-4/3W / 24V - 2700K210.270
819-0710symmetric linear, wide beam [2x30°]LED-FX-8/6W / 24V - 2700K420.470
819-0715symmetric linear, wide beam [2x30°]LED-FX-12/9W / 24V - 2700K630.770
819-0720symmetric linear, wide beam [2x30°]LED-FX-16/12W / 24V - 2700K840.970
819-0725symmetric linear, wide beam [2x30°]LED-FX-20/15W / 24V - 2700K1051.170
819-0735symmetric linear, wide beam [2x30°]LED-FX-8/6W / 24V - 3000K420.470
819-0740symmetric linear, wide beam [2x30°]LED-FX-12/9W / 24V - 3000K630.770
819-0745symmetric linear, wide beam [2x30°]LED-FX-16/12W / 24V - 3000K840.970
819-0750symmetric linear, wide beam [2x30°]LED-FX-20/15W / 24V - 3000K1051.170
819-0755symmetric linear, wide beam [2x30°]LED-FX-4/3W / 24V - 4000K221.270
819-0765symmetric linear, wide beam [2x30°]LED-FX-12/9W / 24V - 4000K707.470
Affichage de 1 à 50 sur 77 entrées.
