FLC100 series

FLC121 LED #2

Static White

Choose a variant:

Spigot
Surface
Wallbracket

Choose a family:

FLC121 LED #2
Diameter ⌀: 112 mm
FLC131 LED #2
Diameter ⌀: 155 mm
FLC141 LED #3
Diameter ⌀: 193 mm
Home
Products
Projectors

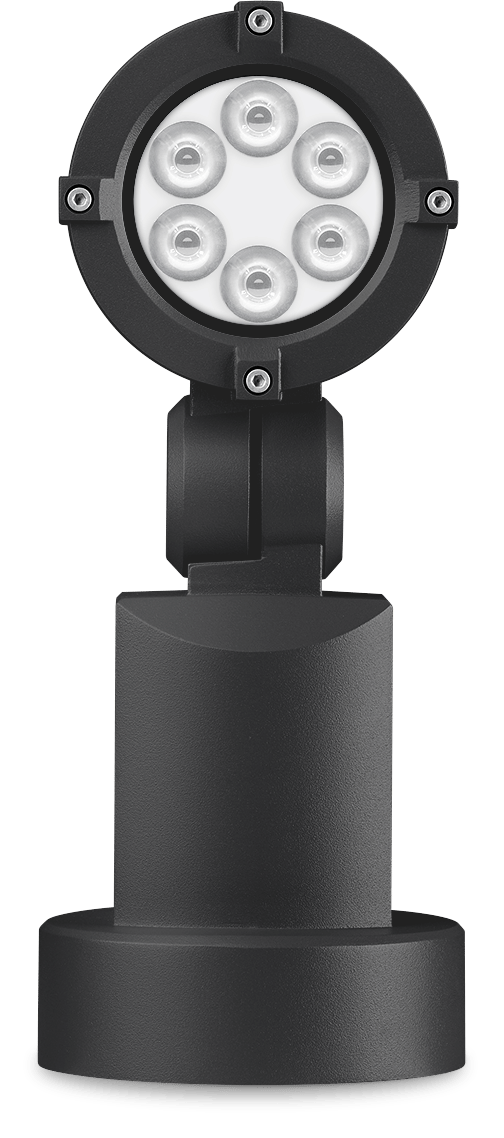

FLC121 LED #2
Family Spec Sheet Installation Instructions More Downloads

IP66, Class I. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection + primer including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. Integral EC electronic converter in thermally separated compartment. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. The luminaire is factory- sealed and does not need to be opened during the installation.

FLC121 LED #2 Schematics
Colours
RAL9004 Signal black
RAL9006 White aluminium
RAL9007 Grey aluminium
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel Hardware (unpainted)
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK07
Ingress ProtectionIP66
FinishPowdercoat finish in black RAL9004, grey aluminium RAL9007, white aluminium RAL9006 or white RAL9016
Corrosion Protection5CE+Primer
Electrical
Ballast / DriverIntegral EC electronic converter in thermally-separated compartment
Power Supply230V / 50 Hz
Additional Information
LifetimeTa=40° L90B10 > 90000h
WarrantyThe product is supplied with 10-year warranty. Please refer to the LED Warranty Statement located on www.we-ef.com for further details.

Rated Lumen

Part-IDLight DistributionLight SourceRated LumenCRISpecificationsPhotometrics
TextPDF
145-0031symmetric, medium beam [M]LED-6/12W / 700 mA - 3000 K1511.880 ULD
145-0032symmetric, medium beam [M]LED-6/12W / 700 mA - 4000 K1616.180 ULD
145-0034symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 3000 K1610.780 ULD
145-0034linear spread, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 3000 K1526.280 ULD
145-0035symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 4000 K1721.880 ULD
145-0035linear spread, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 4000 K1631.580 ULD
145-0052symmetric, wide beam [B]LED-6/12W / 700 mA - 3000 K1347.180 ULD
145-0053symmetric, wide beam [B]LED-6/12W / 700 mA - 4000 K144080 ULD
145-0055symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 3000 K1496.580 ULD
145-0055linear spread, very narrow beam [EE]LED-6/12W / 700 mA - 3000 K1386.380 ULD
145-0056symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 4000 K1599.780 ULD
145-0056linear spread, very narrow beam [EE]LED-6/12W / 700 mA - 4000 K1481.980 ULD
145-0032wallwashLED-6/12W / 700 mA - 4000 K1296.680 ULD
145-0031wallwashLED-6/12W / 700 mA - 3000 K121380 ULD
145-0284symmetric, wide beam [B]LED-6/12W / 700 mA - 2700 K1254.280 ULD
145-0283symmetric, medium beam [M]LED-6/12W / 700 mA - 2700 K1407.580 ULD
145-0278symmetric, very narrow beam [EE]LED-6/12W / 700 mA - 2700 K1393.380 ULD
145-0292symmetric, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 2700 K1499.680 ULD
145-0283wallwashLED-6/12W / 700 mA - 2700 K1407.580
145-0278linear spread, very narrow beam [EE]LED-6/12W / 700 mA - 2700 K1393.380
145-0292linear spread, very narrow beam, sharp cut-off [EES]LED-6/12W / 700 mA - 2700 K1499.680
Showing 1 to 21 of 21 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
145-0030Snoot ET
