IP66. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection + primer including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Mains voltage versions, ON-OFF Class I. Integral EC electronic converter. 24VDC low voltage versions, ON-OFF Class III. Remote 24VDC power supply to be ordered separately.

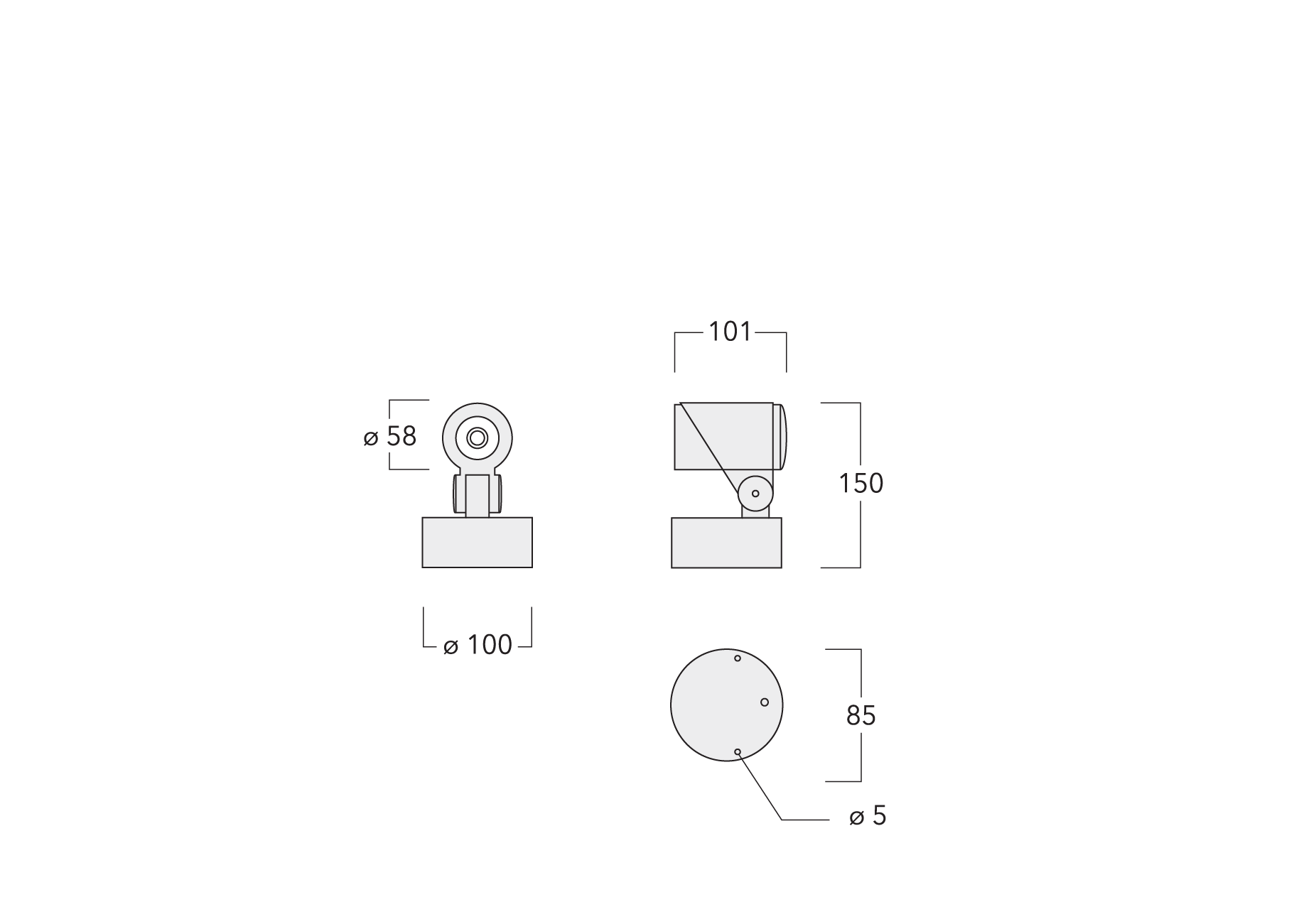

FLC301 Surface mounted Schematics
Colours
RAL9004 Signal black
RAL9007 Grey aluminium
RAL9006 White aluminium
Material
BodyMarine-grade, die-cast aluminium alloy
LensSafety glass lens
FastenersPCS Polymer Coated Stainless Steel Hardware (unpainted)
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK07
Ingress ProtectionIP66
Corrosion Protection5CE+Primer
Electrical
Ballast / DriverIntegral EC electronic converter
Power Supply220-240V / 50-60 Hz
Additional Information
Part-IDLight DistributionLight SourceRated LumenCRIDownloads
