WE-EF presents a new dimension of digital urban communication. By integrating state-of-the-art display technology into the proven ETC inground luminaires, multifunctional communication points are created for smart city concepts, public spaces, industry and retail. Each luminaire becomes a visual information platform that convincingly combines wayfinding, safety and interactive user experiences.
The Flexible Solution for Modern Wayfinding and Communication
The ETC-DI products combine proven luminaire and building technology with durable, high-quality construction and state-of-the-art display solutions – from LED matrix displays for clearly visible safety messages or dynamic light animations to high resolution LCD displays for flexible content playback. Integrated WiFi, Bluetooth and 4G connectivity enables content to be controlled seamlessly and updated remotely at any time. Intelligent system integration allows multiple users to access individual luminaires or entire installation groups, reducing both investment and maintenance costs. At the same time, operators and visitors benefit from improved wayfinding, creative design options and outdoor spaces enhanced through digital communication. The result: fewer standalone systems, lower costs and maximum functionality for urban and architectural projects that not only impress, but create real added value.
ETC130 LED Matrix | Specifications
Digital displays for wayfinding, navigation and urban communication. Combining advanced software and connectivity with a powerful 2,400-RGB-LED matrix, they deliver dynamic visual information, striking lighting effects and excellent visibility in all outdoor environments.

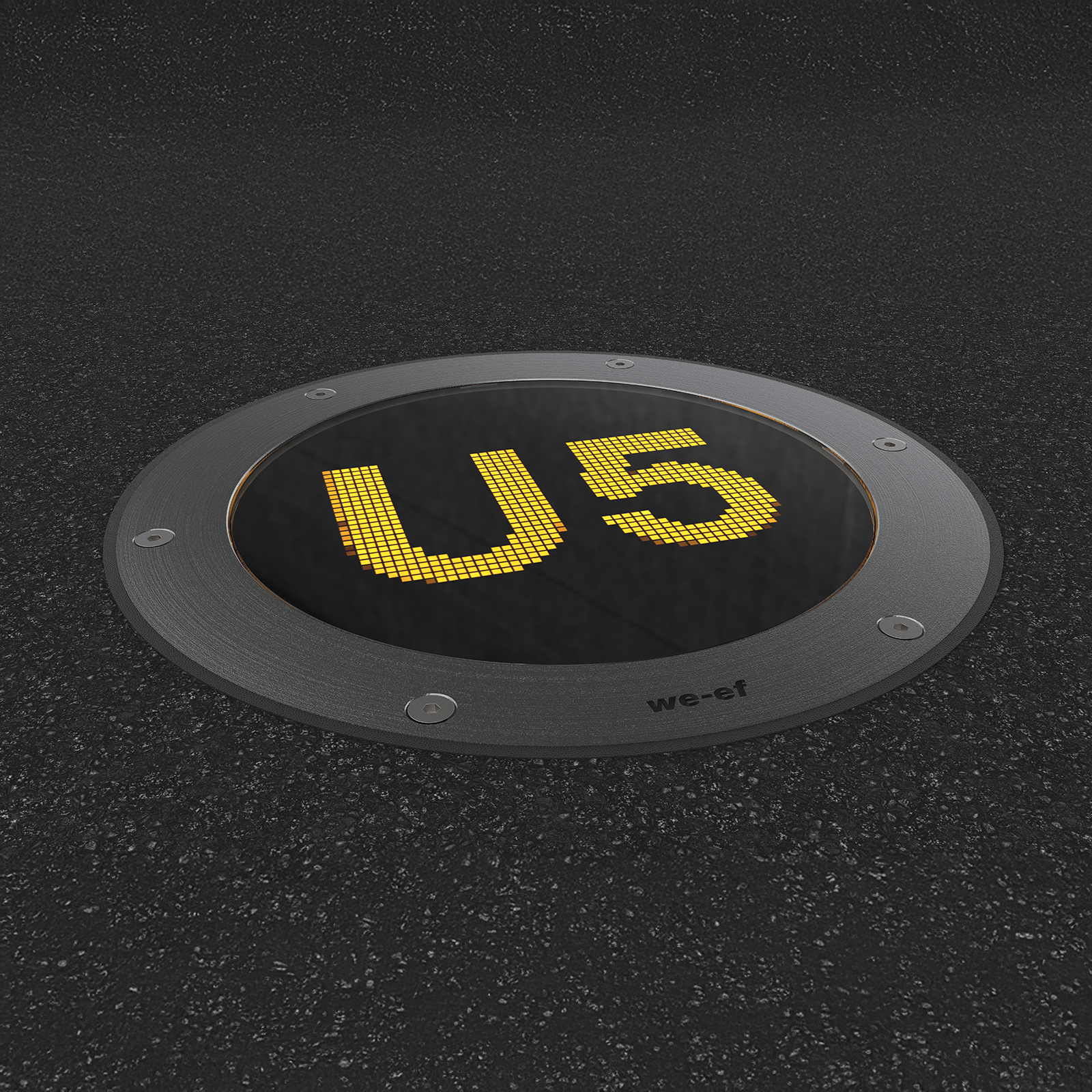

185-4074 ETC130-DI-MA
Stainless steel construction, including PCS hardware
Safety glass panel with an integrated matrix LED display
RM 3 × 3 mm matrix LED display, bonded directly to the front glass, with a 178 mm (7") display size and 2,400 individually addressable SMD RGB LEDs. Max. LED power approx. 30 W, integrated ESP32 MCU or equivalent, 50 W power supply and WiFi antenna. Max. Ta -20 to 40 °C, Tq 25 °C, service life 35,000 h @ 50% brightness. The ETC130-DI-MA is also available as a retrofit kit for existing installations on request. The luminaire is not designed for continuous underwater operation and must be switched off in the event of flooding.
185-0924 | BET13-II305/203/MDPE Ground Installation Pot 185-0325 | BE12 ST Mounting Cover 185-1624 | SJB130 Connection Sleeve
Integrated Digital Infrastructure
Smart lighting solutions that combine advanced sensors, software and connectivity for autonomous operation and seamless integration with leading smart city technologies.
Enhanced Urban Communication
Beyond light, integrated displays and connectivity create a digital infrastructure that enhances interaction between people and their surroundings.
Future-Proof Flexibility
Modular solutions with future-ready components such as cameras and communication systems that meet evolving smart city requirements.
Applications and Use Cases
Wayfinding & Orientation
Guiding Visitors
through complex environments with intuitive visual guidance, dynamic arrows and color-coded routes directly at ground level.
Information & Communication
Displaying information
such as platform numbers, gate information or simple wayfinding symbols at decision points where visitors need orientation.
Design & Atmosphere
Shaping Environments
with subtle light transitions and synchronized patterns that define zones, reinforce branding and create memorable spatial experiences.
Industry & Logistics
Optimizing Logistics Processes
with robust displays showing the status of loading bays, zone markings or traffic indicators – keeping operations efficient with real-time information visible at ground level to drivers and workers.
Intelligent Lighting
WE-EF offers energy-efficient, intelligent lighting that seamlessly integrates with digital displays to create innovative communication solutions. This integration is central to smart city lighting, where IoT devices and data analysis optimize urban services. Intelligent management systems ensure that lighting is only used when needed – saving energy, supporting wildlife and protecting the night sky.
Learn moreIntelligent Lighting
WE-EF offers energy-efficient, intelligent lighting that seamlessly integrates with digital displays to create innovative communication solutions. This integration is central to smart city lighting, where IoT devices and data analysis optimize urban services. Intelligent management systems ensure that lighting is only used when needed – saving energy, supporting wildlife and protecting the night sky.
Learn moreWould you like to learn more about WE-EF digital displays?
Do you have a project in mind, would you like to learn more about WE-EF’s capabilities for smart city integrations, or do you have questions about the technical specifications of individual modules or the overall system? Please contact us by email or at: +49 5194 909-0
