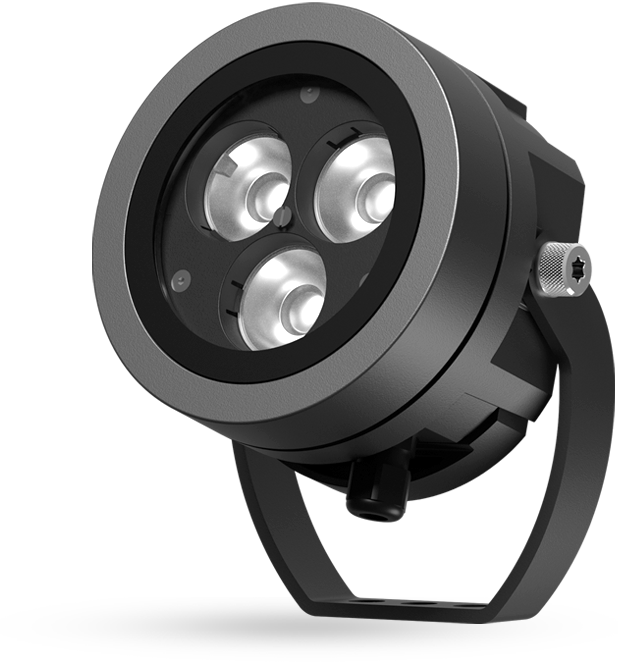

FLC210 LED
Family Spec Sheet Installation Instructions More Downloads

IP66, Class I. Class II on request. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. One cable gland. Second gland for through wiring on request. Integral EC electronic converter, thermally separated. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. DALI Interface. Eco Step Dim® on request. Maximum one internal optical accessory possible.

FLC210 LED Schematics
Colours
RAL9004 Signal black
RAL9006 White aluminium
RAL9007 Grey aluminium
RAL7016 Anthracite grey
RAL9016 Traffic white
Material
BodyMarine-grade, die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel Hardware
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK07
Ingress ProtectionIP66
Corrosion Protection5CE
Electrical
Ballast / DriverStandard. Optional DALI version available. To be specified at time of ordering.
CableOne cable entry, second cable entry on request
Power Factor> 0.9
Power Supply220-240V / 50-60 Hz
Surge ProtectionSP10
Additional Information
LifetimeTa=25° L90B10 > 90000h
Energy efficiency classD-E (Light source)

Rated Lumen

Wattage

To
Part-IDLight DistributionLight SourceRated LumenCRISpecificationsPhotometrics
TextPDF
139-2361symmetric, wide beam [B]LED-3/6W / 180 mA - 2700 K643.380 ULD
139-2359symmetric, wide beam [B]LED-3/6W / 180 mA - 3000 K643.380 ULD
139-2360symmetric, wide beam [B]LED-3/6W / 180 mA - 4000 K692.880 ULD
139-2364symmetric, medium beam [M]LED-3/6W / 180 mA - 2700 K684.180 ULD
139-2362symmetric, medium beam [M]LED-3/6W / 180 mA - 3000 K684.180 ULD
139-2363symmetric, medium beam [M]LED-3/6W / 180 mA - 4000 K736.880 ULD
139-2367symmetric, narrow beam [E]LED-3/6W / 180 mA - 2700 K629.980 ULD
139-2365symmetric, narrow beam [E]LED-3/6W / 180 mA - 3000 K629.980 ULD
139-2366symmetric, narrow beam [E]LED-3/6W / 180 mA - 4000 K678.380 ULD
139-2370symmetric, very narrow beam [EE]LED-3/6W / 180 mA - 2700 K693.280 ULD
139-2368symmetric, very narrow beam [EE]LED-3/6W / 180 mA - 3000 K693.280 ULD
139-2369symmetric, very narrow beam [EE]LED-3/6W / 180 mA - 4000 K746.580 ULD
139-2373symmetric, very narrow beam, sharp cut-off [EES]LED-3/6W / 180 mA - 2700 K624.880 ULD
139-2371symmetric, very narrow beam, sharp cut-off [EES]LED-3/6W / 180 mA - 3000 K624.880 ULD
139-2372symmetric, very narrow beam, sharp cut-off [EES]LED-3/6W / 180 mA - 4000 K676.880 ULD
139-2376symmetric, wide beam [B]LED-3/9W / 250 mA - 2700 K903.180 ULD
139-2374symmetric, wide beam [B]LED-3/9W / 250 mA - 3000 K903.180
139-2375symmetric, wide beam [B]LED-3/9W / 250 mA - 4000 K96580 ULD
139-2379symmetric, medium beam [M]LED-3/9W / 250 mA - 2700 K960.480 ULD
139-2377symmetric, medium beam [M]LED-3/9W / 250 mA - 3000 K960.480
139-2378symmetric, medium beam [M]LED-3/9W / 250 mA - 4000 K1026.280 ULD
139-2382symmetric, narrow beam [E]LED-3/9W / 250 mA - 2700 K884.280 ULD
139-2380symmetric, narrow beam [E]LED-3/9W / 250 mA - 3000 K884.280 ULD
139-2381symmetric, narrow beam [E]LED-3/9W / 250 mA - 4000 K944.880 ULD
139-2385symmetric, very narrow beam [EE]LED-3/9W / 250 mA - 2700 K973.180 ULD
139-2383symmetric, very narrow beam [EE]LED-3/9W / 250 mA - 3000 K973.180 ULD
139-2384symmetric, very narrow beam [EE]LED-3/9W / 250 mA - 4000 K1039.880 ULD
139-2388symmetric, very narrow beam, sharp cut-off [EES]LED-3/9W / 250 mA - 2700 K885.180 ULD
139-2386symmetric, very narrow beam, sharp cut-off [EES]LED-3/9W / 250 mA - 3000 K885.180 ULD
139-2387symmetric, very narrow beam, sharp cut-off [EES]LED-3/9W / 250 mA - 4000 K950.280 ULD
139-2391symmetric, wide beam [B]LED-3/12W / 350 mA - 2700 K1212.480
139-2389symmetric, wide beam [B]LED-3/12W / 350 mA - 3000 K1212.480 ULD
139-2390symmetric, wide beam [B]LED-3/12W / 350 mA - 4000 K1311.480 ULD
139-2394symmetric, medium beam [M]LED-3/12W / 350 mA - 2700 K1289.480 ULD
139-2392symmetric, medium beam [M]LED-3/12W / 350 mA - 3000 K1289.480 ULD
139-2393symmetric, medium beam [M]LED-3/12W / 350 mA - 4000 K1394.680 ULD
139-2397symmetric, narrow beam [E]LED-3/12W / 350 mA - 2700 K1187.180 ULD
139-2395symmetric, narrow beam [E]LED-3/12W / 350 mA - 3000 K1187.180 ULD
139-2396symmetric, narrow beam [E]LED-3/12W / 350 mA - 4000 K128480 ULD
139-2400symmetric, very narrow beam [EE]LED-3/12W / 350 mA - 2700 K1306.480 ULD
139-2398symmetric, very narrow beam [EE]LED-3/12W / 350 mA - 3000 K1306.480 ULD
139-2399symmetric, very narrow beam [EE]LED-3/12W / 350 mA - 4000 K141380 ULD
139-2403symmetric, very narrow beam, sharp cut-off [EES]LED-3/12W / 350 mA - 2700 K1184.480 ULD
139-2401symmetric, very narrow beam, sharp cut-off [EES]LED-3/12W / 350 mA - 3000 K1184.480 ULD
139-2402symmetric, very narrow beam, sharp cut-off [EES]LED-3/12W / 350 mA - 4000 K1275.680 ULD
139-2370linear spread, very narrow beam [EE]LED-3/6W / 180 mA - 2700 K621.280 ULD
139-2368linear spread, very narrow beam [EE]LED-3/6W / 180 mA - 3000 K621.280 ULD
139-2369linear spread, very narrow beam [EE]LED-3/6W / 180 mA - 4000 K66980 ULD
139-2385linear spread, very narrow beam [EE]LED-3/9W / 250 mA - 2700 K87280 ULD
139-2384linear spread, very narrow beam [EE]LED-3/9W / 250 mA - 4000 K931.880 ULD
Showing 1 to 50 of 63 entries.

Accessories

Part-IDTitleSpecifications
TextPDF
147-0543TS1-2/M12 Pole clamp, single (Ø 76-89)
