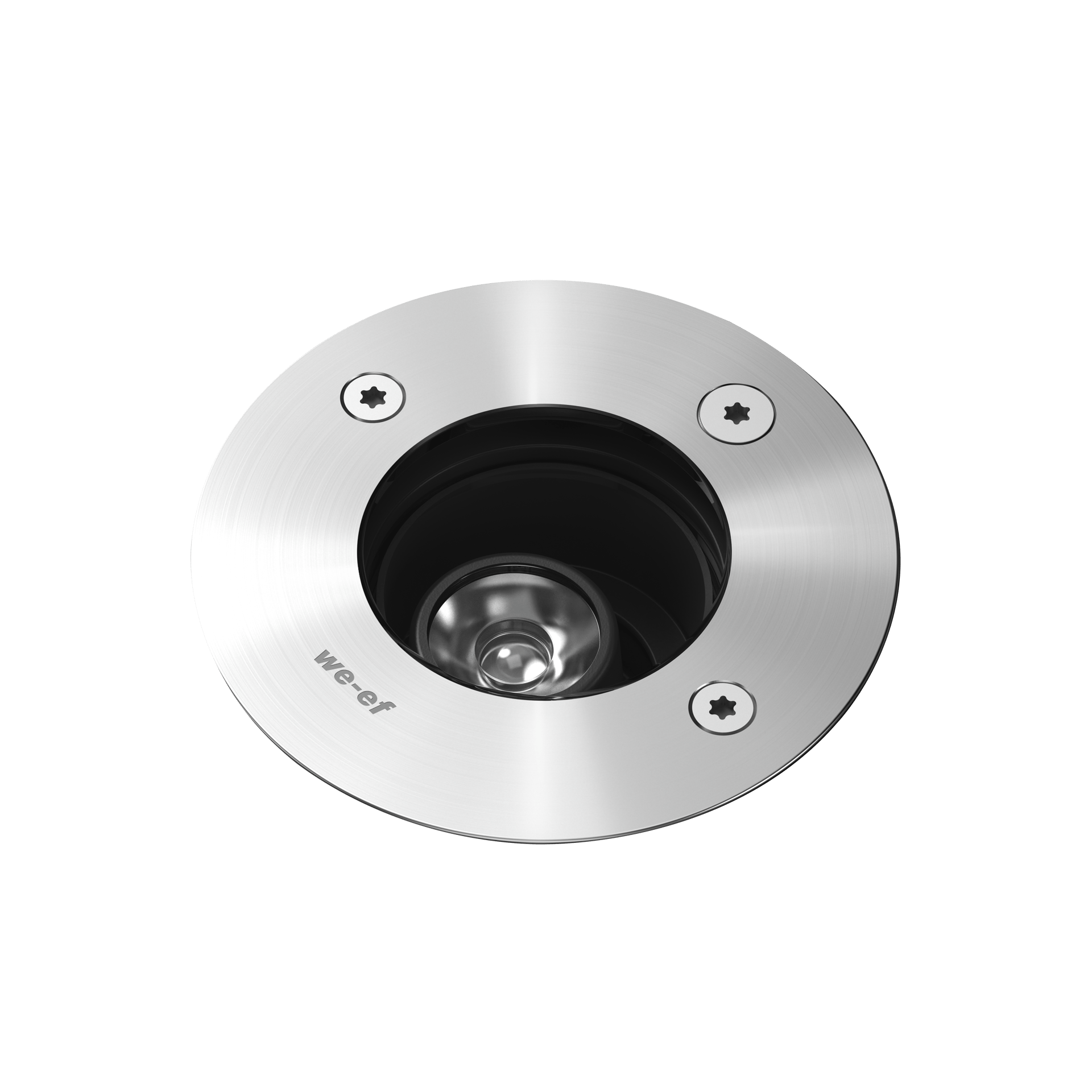

With its unique adjustment mechanism, the new ETC210-TB inground luminaire from WE-EF can be flexibly adapted to lighting requirements even after installation.

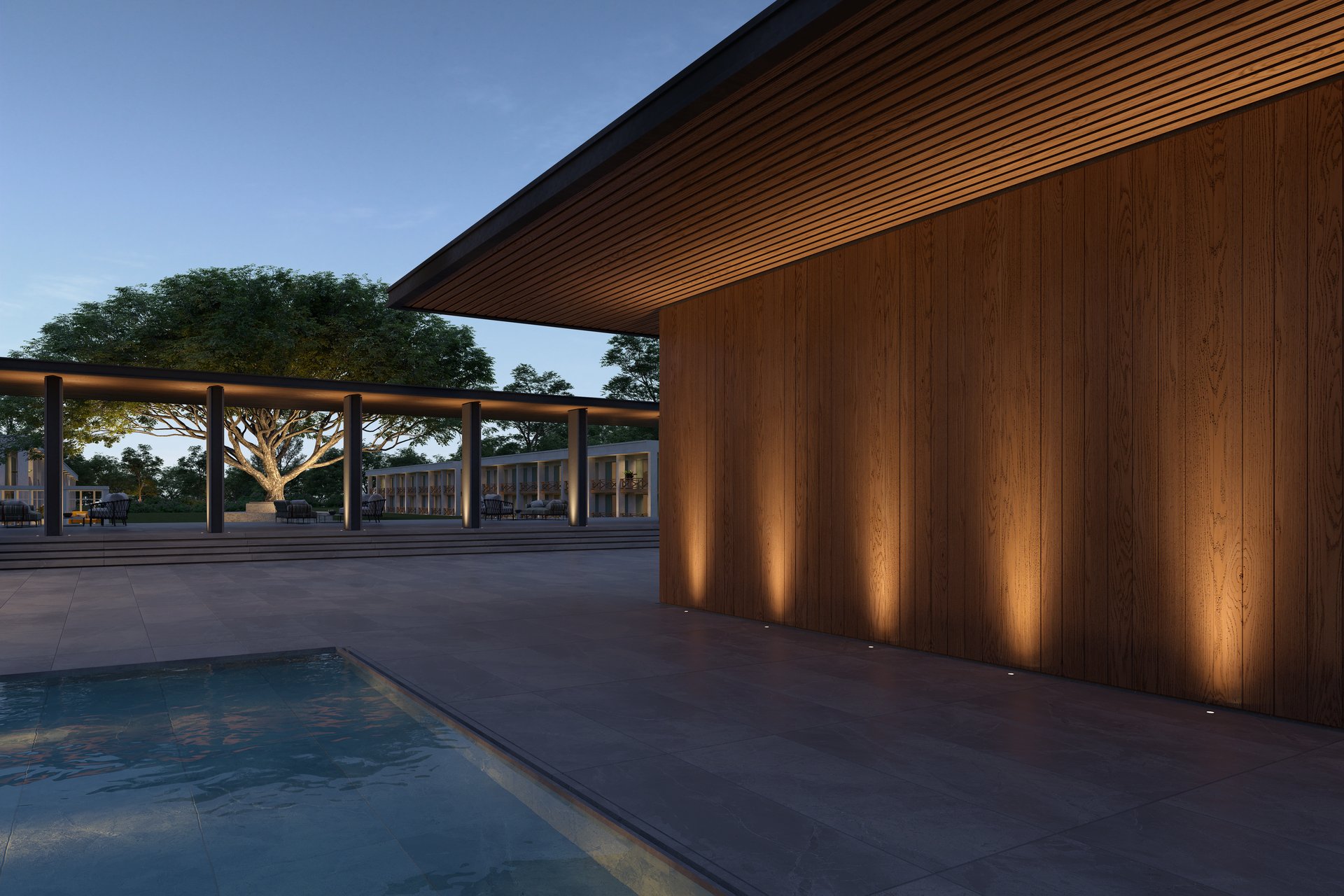

Whether used for architectural lighting beneath canopies or archways, for the precise illumination of façades, to create grazing light effects, accentuate contours, structure surfaces, or provide orientation, WE-EF inground luminaires combine advanced optical technology with precise light control while minimising spill light towards the night sky. Their popularity is based on the successful combination of lighting design flexibility, visual comfort, efficiency and long service life, complemented by a comprehensive product portfolio. Suitable solutions are available for virtually any application requiring precisely directed light from below. With the ETC210-TB, WE-EF introduces a new inground luminaire that can be continuously tilted from 0° to 30°. Its key feature is a special adjustment mechanism that allows the inclination of the optical assembly to be adjusted externally while the luminaire remains installed. The setting can also be modified at any time to accommodate changing lighting requirements. This eliminates the need to open the luminaire, preserving the integrity of the factory-sealed housing. Rotation is equally simple and can also be carried out from the outside. With approximately 350° of rotation, the ETC210-TB can be precisely aligned after installation, enabling the lighting effect to be adapted flexibly to the specific project situation.
Including its installation ring, the compact ETC210-TB has a diameter of just under 95 mm and achieves an efficacy of 136 lm/W with a power consumption of only 3.5 W. It is available in 2200 K, 2700 K and 3000 K, with PC Amber 1850 K available on request. A choice of optics, including symmetric very narrow “sharp cut-off” [EES], symmetric very narrow [EE], symmetric medium beam [M] and symmetric wide beam [B], allows for a wide range of lighting effects tailored to project-specific requirements. The ETC210-TB is rated IP66/IP67, suitable for pedestrian traffic and can be driven over at low speeds. Its toughened safety glass cover withstands a maximum static load of 2,500 kg. Long-term reliability is ensured through proven WE-EF quality concepts such as the five-stage 5CE corrosion protection system, weather- and ageing-resistant sealing technology, and sophisticated thermal management for the LEDs.
