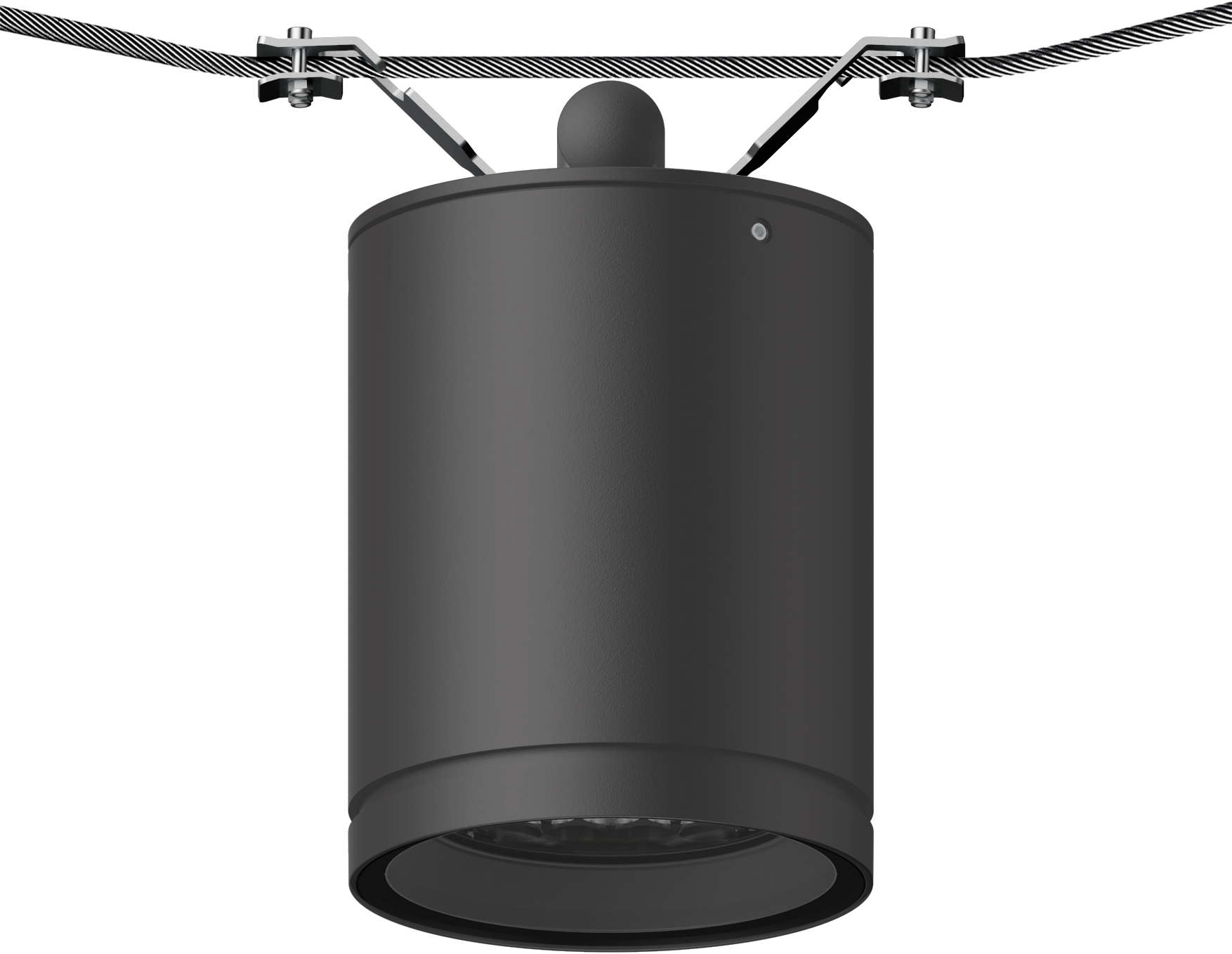

DAS140 TW LED TUNABLE WHITE
Choose a family:
IP66, Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. One cable entry, second cable entry for through wiring with cable connector optional. Integral driver in thermally separated compartment. CAD-optimized optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. Tunable White technology. DALI interface. The luminaire is factory-sealed and does not need to be opened during installation. Includes cable connector, for cable 0.08-0.47 inch. +/- 10° adjustable to compensate for sloping catenary systems. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX – 9004 (Black) + XXX-XXXX (Accessory 1)
Colors
Material
| Body | Marine-grade, die-cast aluminum alloy |
| Fasteners | PCS Polymer Coated Stainless Steel Hardware |
| Gasket | Silicone CCG® Controlled Compression Gasket |
| Impact Protection | IK07 |
| Ingress Protection | IP66 |
| Corrosion Protection | 5CE |
| Mounting | Includes cable connector, for cable 2-12 mm. +/- 10° adjustable |
Electrical
| Ballast / Driver | DALI |
| Cable | One cable entry, optional T-QPD connector for through wiring available on request |
| Power Factor | > 0.9 |
Additional Information
| Lifetime | Ta=25°/40° L90B10 > 90000h |
