DOC100 series

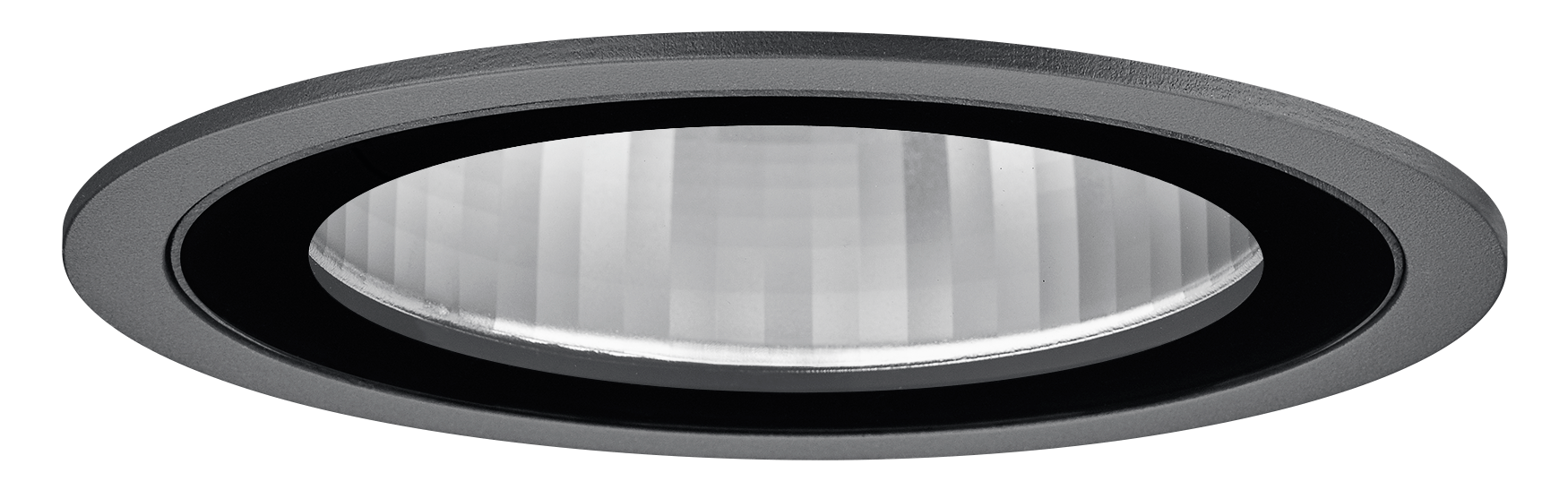

DOC120-FT TW LED TUNABLE WHITE [For Remodel]
Choose a family:
DOC120-FT TW LED TUNABLE WHITE [For Remodel]
Depth: 4.76 inDiameter ⌀: 6.10 in
DOC120-FT TW LED TUNABLE WHITE [New Construction]
Depth: 4.76 inDiameter ⌀: 6.10 in
DOC140-FT TW LED TUNABLE WHITE [For Remodel]
Depth: 5.87 inDiameter ⌀: 8.50 in
DOC140-FT TW LED TUNABLE WHITE [New Construction]
Depth: 5.87 inDiameter ⌀: 8.50 in
IP66, Class I. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG_R_ Controlled Compression Gasket. Safety glass lens. Two cable entries. Integral EC electronic converter in thermally separated compartment. Darklight anodised aluminium reflector for superior illumination and glare control. Factory-installed LED circuit board. Tunable White Technology. DMX Interface. The luminaire is factory- sealed and does not need to be opened during the installation. A pre-installation blockout, proud or flush, is available and recommended for mounting in concrete ceilings. To be ordered separately. A maximum of one internal optical accessory.
![DOC120-FT TW LED TUNABLE WHITE [For Remodel] Schematics](/cdn-cgi/image/format=auto,width=1920/https://we-ef.canto.global/direct/image/7mtqh2eu796uj9e6e5upttv23o/Vrlv_uapNww3Syqk9qxoP83MTvc/original?content-type=image%2Fpng&name=WE-EF_DOC120_LED_FT_dwg_web_us.png)

Colors
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
RAL8019 Dark Bronze
Material
| Body | Marine-grade, die-cast aluminium alloy |
| Lens | Safety glass lens |
| Fasteners | PCS Polymer Coated Stainless Steel Hardware |
| Gasket | Silicone CCG® Controlled Compression Gasket |
| Impact Protection | IK07 |
| Ingress Protection | IP66 |
| Corrosion Protection | 5CE |
| Mounting | A pre-installation blockout, proud or flush, is available and recommended for mounting in concrete ceilings. To be ordered separately. |
Electrical
| Ballast / Driver | DMX |
| Cable | Two cable entries |
| Power Supply | Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order. |
