ETC300 series

ETC340-FS LED

Static White
 Colour Changer
 Tunable White

Choose a variant:

Fixed
Gimbal

Choose a family:

ETC320-FS LED
Depth: 7.09 in
Diameter ⌀: 6.30 in
ETC330-FS LED
Depth: 7.87 in
Diameter ⌀: 9.84 in
ETC340-FS LED
Depth: 7.87 in
Diameter ⌀: 11.81 in
Home
Products
Inground Luminaires

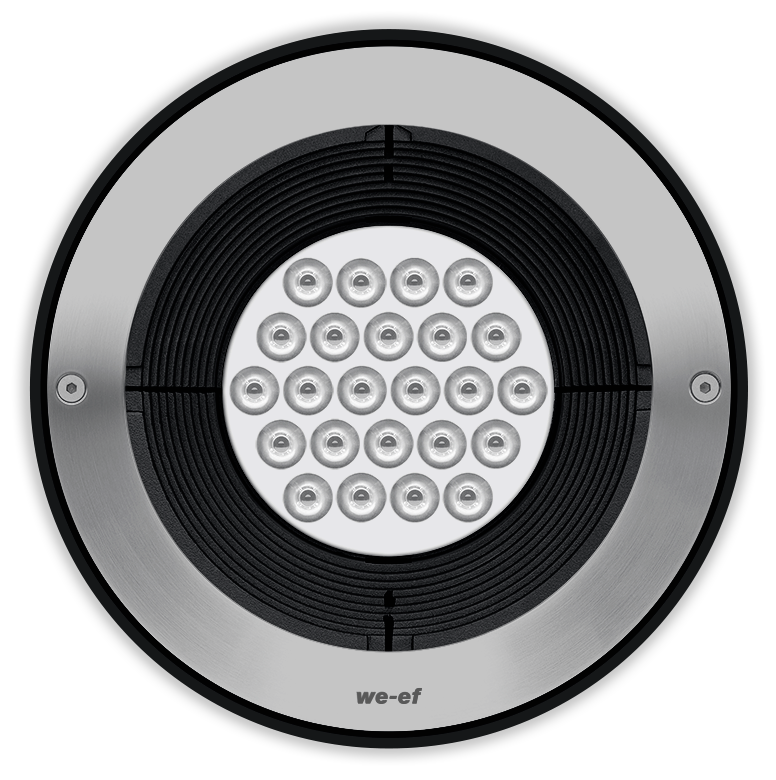

ETC340-FS LED
Family Spec Sheet Installation Instructions More Downloads

IP69K. Class I. IK10+. Stainless steel construction. PCS hardware. ASC Anti Slip ceramic Coating on request. Silicone CCG® Controlled Compression Gasket. Safety glass lens; max load 5.5 tons (11,000 lbs). Luminaire can be driven over at low speed. Factory-sealed termination chamber complete with cable gland and 3 ft of flexible PVC-free, gel-impregnated anti-wicking cable. CAD-optimized optics for superior illumination and glare control. Integral driver. Advanced thermal management protects LEDs while optimizing lumens output. LED module can be easily removed for upgrading. The concrete-pour installation blockout is supplied as standard with luminaire.

ETC340-FS LED Schematics
Colors
Stainless Steel
Material
BodyLuminaire body constructed of deep drawn stainless steel. Outer housing composite material.
FastenersPCS polymer coated stainless steel
GasketSilicone CCG® Controlled Compression Gasket
Impact ProtectionIK10+
Ingress ProtectionIP69K - HIGHEST PROTECTION RATING AVAILABLE
FinishNatural stainless steel
Corrosion Protection5CE
MountingSuitable for installation in concrete or earth. Suitable for walk-over and drive-over applications. Proper drainage and foundation support must be provided.
Electrical
Ballast / DriverIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Cable3 feet of flexible 18/3 cable
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Additional Information
LifetimeLED >60,000 h Ta 25°C (L70/B10) Control gear >50,000 h Ta 25°C
Dimming0-10V available in request. Must be factory fitted.

Rated Lumen

Part-IDLight DistributionLight SourceRated LumenCRISpecificationsPhotometrics
TextPDF
185-7697symmetric, wide beam [W]LED-24/36W / 500 mA - 3000 K4043.580 ULD
185-7698symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-24/36W / 500 mA - 3000 K4818.280 ULD
185-7699symmetric, wide beam [W]LED-24/36W / 500 mA - 4000 K4325.680 ULD
185-7700symmetric, very narrow beam, 'sharp cut-off' [VNS]LED-24/36W / 500 mA - 4000 K5154.380 ULD
185-9748symmetric, very narrow beam [VN]LED-24/36W / 500 mA - 3000 K4439.580 ULD
185-9749symmetric, medium beam [M]LED-24/36W / 500 mA - 3000 K4542.480 ULD
185-9752symmetric, very narrow beam [VN]LED-24/36W / 500 mA - 4000 K4749.280 ULD
185-9753symmetric, medium beam [M]LED-24/36W / 500 mA - 4000 K4859.480 ULD
185-9749wallwashLED-24/36W / 500 mA - 3000 K3497.680 ULD
185-9753wallwashLED-24/36W / 500 mA - 4000 K3741.780 ULD
185-9748linear spread, very narrow beam [VN]LED-24/36W / 500 mA - 3000 K4028.980 ULD
185-9752linear spread, very narrow beam [VN]LED-24/36W / 500 mA - 4000 K431080 ULD
185-9748symmetric, narrow beam [N]LED-24/36W / 500 mA - 3000 K4111.280 ULD
185-9752symmetric, narrow beam [N]LED-24/36W / 500 mA - 4000 K439880 ULD
185-7698linear spread, very narrow beam, 'sharp cut-off'LED-24/36W / 500 mA - 3000 K4435.880 ULD
185-7700linear spread, very narrow beam, 'sharp cut-off'LED-24/36W / 500 mA - 4000 K4745.380 ULD
185-7698symmetric, narrow beam, 'sharp cut-off'LED-24/36W / 500 mA - 3000 K4479.980 ULD
185-7700symmetric, narrow beam, 'sharp cut-off'LED-24/36W / 500 mA - 4000 K4792.580 ULD
185-7888symmetric, wallgrazer [A6]LED-24/36W / 500 mA - 2700K3604.880 ULD
185-7886symmetric, wallgrazer [A6]LED-24/36W / 500 mA - 3000 K3875.180 ULD
185-7887symmetric, wallgrazer [A6]LED-24/36W / 500 mA - 4000 K4145.580 ULD
Showing 1 to 21 of 21 entries.
