ETV140 LED
Choose a family:
L×W: 24.69"×1.89"
L×W: 24.69"×1.89"
L×W: 36.50"×1.89"
L×W: 36.50"×1.89"
L×W: 48.31"×1.89"
L×W: 48.31"×1.89"

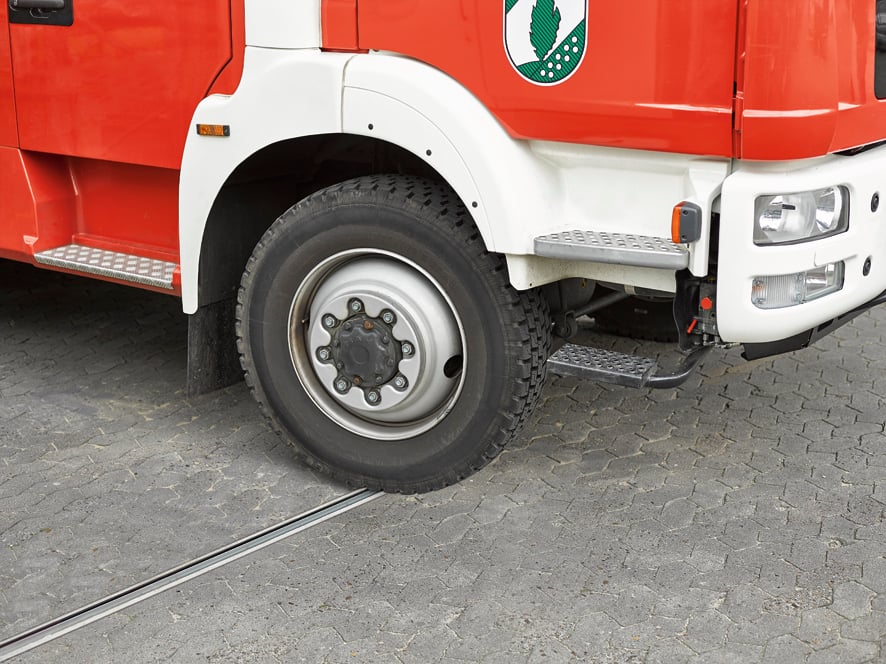

IP69K. Class I. IK08. Marine-grade, all aluminum construction. Anodized aluminum extrusion. PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens; max static load, 3.3 tons (6,600 lbs) (according to DIN EN 60598-2-13). Luminaire can be driven over at low speed, without accelerating or turning, by vehicles with air-filled tires, at a weight up to 5.5 tons (11,000 lbs) per wheel. Factory-sealed termination chamber complete with cable gland and 3 ft of flexible PVC-free, gel-impregnated anti-wicking cable. Linear PMMA LED lens. Integral driver in thermally separated compartment. Factory-installed LED circuit board. LED board can be easily removed for upgrading. 0-10V Dimming. Luminaire is factory-sealed and does not need to be opened during installation. The installation blockout to be ordered separately; blockouts can house between 1-4 luminaires. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)
Colors
Material
| Body | Marine-grade all aluminium construction. Anodized aluminium extrusion. |
| Lens | Safety glass lens |
| Fasteners | PCS polymer coated stainless steel |
| Gasket | Silicone rubber gasket |
| Impact Protection | IK08 |
| Ingress Protection | IP67 |
| Mounting | Installation blockout (for single or multiple luminaire configuration) required, to be ordered separately. |
Electrical
| Ballast / Driver | Electronic converter with 0-10V interface |
| Cable | 3 ft of flexible PVC-free cable |
| Power Supply | Integral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order. |
| Surge Protection | 1/2 kV |
