AM series
AML-V Type 1

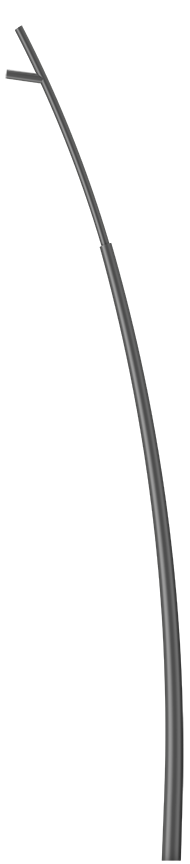

Round tapedred curved aluminum pole with single horizontal luminaire mounting arm. Chromated pre-treatment with superiror powdercoat finish in black RAL 9004, grey metallic RAL 9007, white RAL 9016 or dark bronze RAL 8019. Specify finish. Consult WE-EF color chart for other options. Service door with tamper-proof hardware. Base plate welded to tubular shaft. Aluminum base plate cover. 2 or 3 sections depending on pole height.
Single luminaire mounting arrangement. Specify suitable horizontal tenon for intended luminaire.

| Part-ID | D2 | D×L1 | H1 | Wall Thickness | Weight |
|---|---|---|---|---|---|
| 693-3624 | 7 | ø 2.38 x 3.94/ ø 1.66 x 3.94 | 23 ft 6 in | 0.19 | 100 |
