RFS500 series

RFS540 LED

Static White

Choose a family:

RFS530 LED
Diameter ⌀: 18.11 in
H: 3.19"
RFS540 LED
Diameter ⌀: 22.44 in
H: 3.23"
Home
Products
Catenary Luminaires

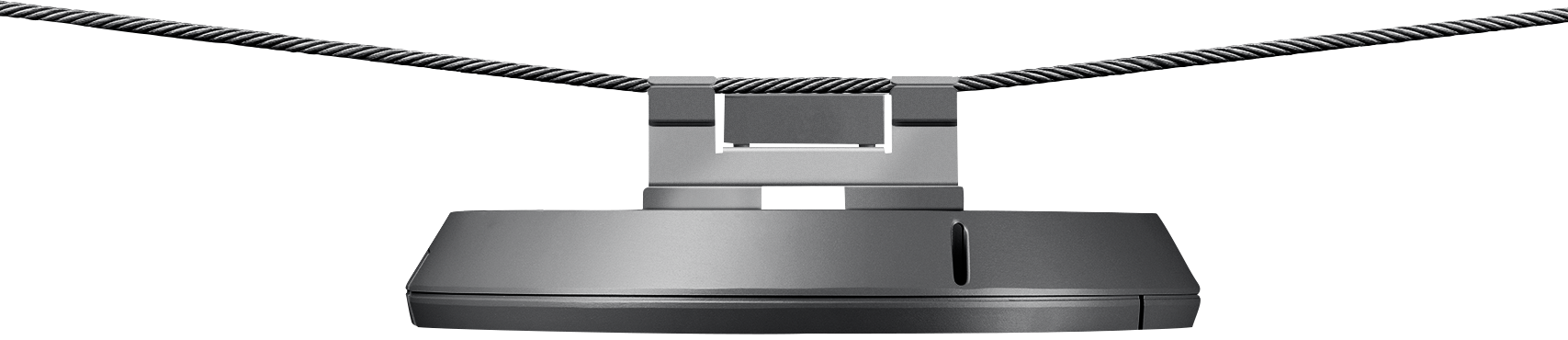

RFS540 LED
Family Spec Sheet Installation Instructions More Downloads

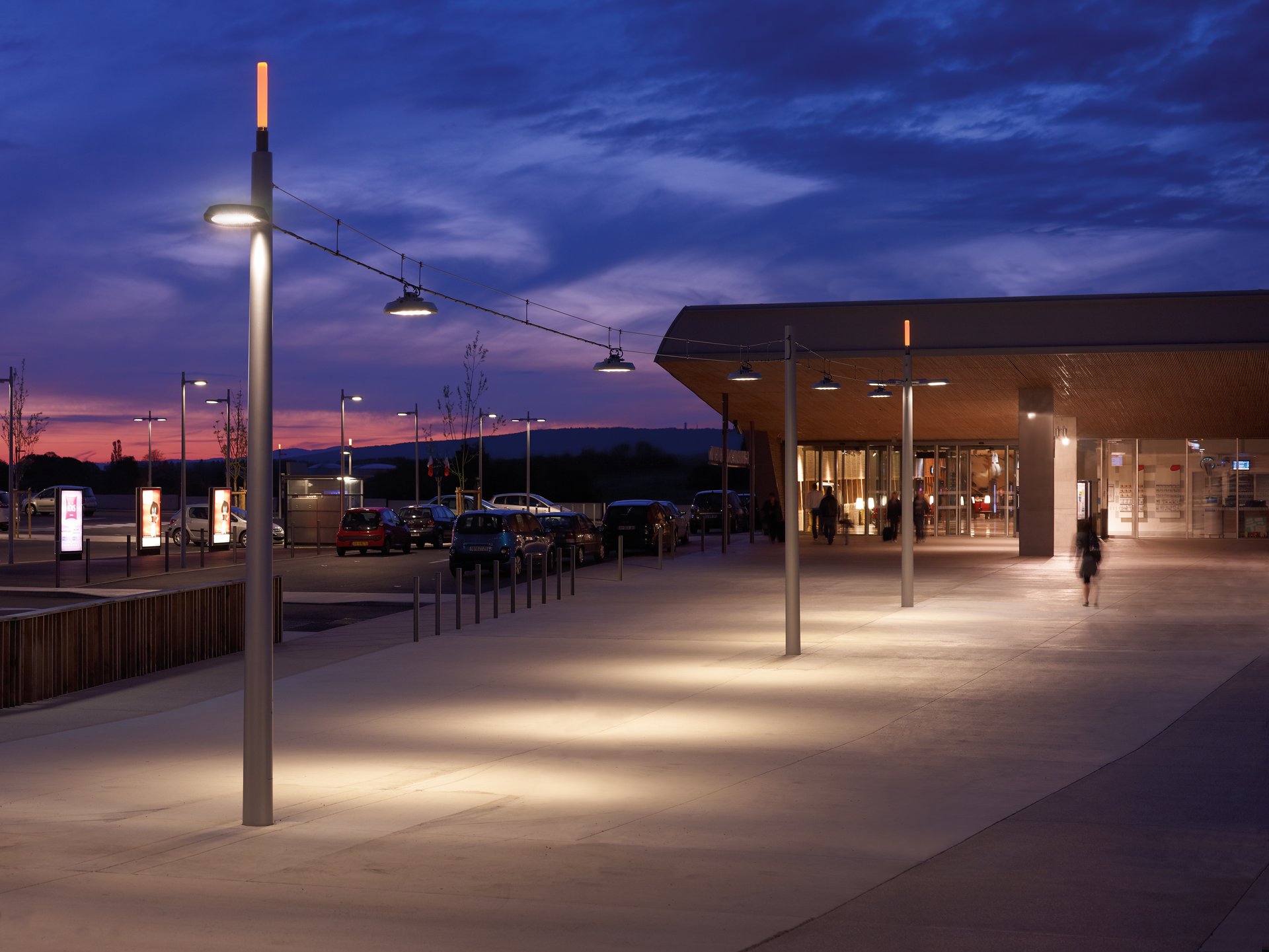

Catenary-mounted luminaire. IP66. Class I. IK07. Marine-grade, die-cast aluminum alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Non-reflecting safety glass lens hinged. Cable inclination angle: Maximum 10°. Supplied with 3 ft of cable. CAD-optimized optics for superior illumination and glare control. Integral driver in thermally separated compartment. OLC® One LED Concept. Factory-installed LED circuit board. 0-10V Dimming comes standard with luminaire. Luminaire is factory-sealed and does not need to be opened during installation. Rotatable 25°, tiltable 10° on the cable. Specify product with 7 Digit product code – Finish Color. Accessories, such as mounting, optical, and electrical, must be specified separately. Example: XXX-XXXX-9004 (Black) + XXX-XXXX (Accessory 1)

RFS540 LED Schematics
Colors
RAL9004 Black
RAL9007 Grey Metallic
RAL9016 White
RAL8019 Dark Bronze
Material
BodyMarine-grade die-cast aluminium alloy
FastenersPCS Polymer Coated Stainless Steel hardware
GasketSilicone rubber gasket
Impact ProtectionIK07
Ingress ProtectionIP66
FinishPowdercoat finish in Black RAL9004, White RAL9016, Grey Metallic RAL9007 and Dark Bronze RAL8019
Corrosion Protection5CE
MountingMaximum spacing for street lighting applications depends on wattage and light distribution: 5.5 to 9 times the mounting height.
Electrical
Ballast / DriverIntegral EC electronic converter
Power Factor> 0.9
Power SupplyIntegral [ECG] electronic driver 120V-277V. 0-10V dimmable, to be specified with order.
Surge ProtectionIn-line bracket 10kV Surge Protector
Additional Information
LifetimeTa=25°/40° L90B10 > 90000h
BUG RatingPlease see individual Spec Sheets for classification of Backlight, Uplight and Glare.

Rated Lumen

Wattage

To
Part-IDLight DistributionLight SourceRated LumenCRISpecificationsPhotometrics
TextPDF
111-0402[S70] Type II ShortLED-36/36W/36W / 700 mA - 4000 K9235.580 ULD
111-0403[S60] Type III ShortLED-48/48W/48W / 700 mA - 4000 K12996.780 ULD
111-0440[S60] Type III ShortLED-36/18W/18W / 350 mA - 4000 K5612.580 ULD
111-0441[S60] Type III ShortLED-48/24W/24W / 350 mA - 4000 K7483.380 ULD
111-0442[S65] Type III MediumLED-36/18W/18W / 350 mA - 4000 K5561.380 ULD
111-0443[S65] Type III MediumLED-48/24W/24W / 350 mA - 4000 K741580 ULD
111-0444[S70] Type II ShortLED-36/18W/18W / 350 mA - 4000 K5317.880 ULD
111-0515[S60] Type III ShortLED-36/18W/18W / 350 mA - 3000 K5117.380 ULD
111-0517[S60] Type III ShortLED-48/24W/24W / 350 mA - 3000 K6823.180 ULD
111-0519[S65] Type III MediumLED-36/18W/18W / 350 mA - 3000 K5070.680 ULD
111-0523[S70] Type II ShortLED-36/18W/18W / 350 mA - 3000 K4848.680 ULD
111-0525[S70] Type II ShortLED-48/24W/24W / 350 mA - 3000 K6464.780 ULD
111-0576[S70] Type II ShortLED-48/48W48W / 700 mA - 3000 K11519.680 ULD
111-0593[S70] Type II ShortLED-48/48W/48W / 700 mA - 4000 K1231480 ULD
111-0623[S60] Type III ShortLED-36/36W/36W / 700 mA - 4000 K9747.580 ULD
111-0629[S70] Type II ShortLED-48/24W/24W / 350 mA - 4000 K7090.480 ULD
111-0641[S65] Type III MediumLED-48/24W/24W / 350 mA - 3000 K6760.880 ULD
111-0692[S60] Type III ShortLED-36/36W/36W / 700 mA - 3000 K9118.680 ULD
111-0695[S60] Type III ShortLED-48/48W48W / 700 mA - 3000 K12158.280 ULD
111-0701[S65] Type III MediumLED-36/36W/36W / 700 mA - 3000 K9035.380 ULD
111-0702[S65] Type III MediumLED-36/36W/36W / 700 mA - 4000 K9658.580 ULD
111-0703[S65] Type III MediumLED-48/48W48W / 700 mA - 3000 K12047.180 ULD
111-0704[S65] Type III MediumLED-48/48W/48W / 700 mA - 4000 K1287880 ULD
111-0705[S70] Type II ShortLED-36/36W/36W / 700 mA - 3000 K8639.780 ULD
111-1100[S60] Type III ShortLED-36/18W/18W / 350 mA - 2700 K4787.180 ULD
111-1101[S60] Type III ShortLED-36/36W/36W / 700 mA - 2700 K8489.880 ULD
111-1102[S60] Type III ShortLED-48/24W/24W / 350 mA - 2700 K6382.980 ULD
111-1103[S60] Type III ShortLED-48/48W/48W / 700 mA - 2700 K11319.780 ULD
111-1104[S65] Type III MediumLED-36/18W/18W / 350 mA - 2700 K4743.480 ULD
111-1105[S65] Type III MediumLED-36/36W/36W / 700 mA - 2700 K8412.280 ULD
111-1106[S65] Type III MediumLED-48/24W/24W / 350 mA - 2700 K6324.680 ULD
111-1107[S65] Type III MediumLED-48/48W/48W / 700 mA - 2700 K11216.380 ULD
111-1108[S70] Type II ShortLED-36/18W/18W / 350 mA - 2700 K4535.780 ULD
111-1109[S70] Type II ShortLED-36/36W/36W / 700 mA - 2700 K8043.880 ULD
111-1110[S70] Type II ShortLED-48/24W/24W / 350 mA - 2700 K6047.780 ULD
111-1111[S70] Type II ShortLED-48/48W/48W / 700 mA - 2700 K10725.180 ULD
Showing 1 to 36 of 36 entries.
